October 4th 2014 marks the 57th anniversary of Sputnik 1’s launch, the beginning of the Space Age. But ten years before that date another milestone in spaceflight was achieved. On October 4th 2004, the world’s first privately developed spacecraft, “SpaceShipOne”, rocketed to suborbital space winning the $10 million Ansari X Prize and into history. It was not the first record breaking flight of this pivotal spacecraft, however on that day it proved private spaceflight was achievable at lower cost and could have a fast turnaround. In doing so, SpaceShipOne echoed the Orteig Prize won by Charles Lindbergh in 1927. Lindbergh made the world’s first non-stop transatlantic crossing in his plane “The Spirit of St Louis” which boosted today’s $746 billion aviation industry. SpaceShipOne’s successful flight above 100 km was the second within the 14 day window needed to win the X Prize. Like Lindbergh’s flight and the launch of Sputnik 1, SpaceShipOne was the long awaited lift off for the nascent commercial space industry achieving what was once thought to be only possible by governments and nations.

Peter Diamandis, Paul Allen, Burt Rutan and Brian Binnie celebrate. Credit: Don Logan

Peter Diamandis, Paul Allen, Burt Rutan and Brian Binnie celebrate. Credit: Don Logan

Gathering of visionaries

As with the race to the Moon in the 1960’s a convergence of events, conditions and people created the same drive to start the commercial space race. Despite the promise over time of affordable and safe access to space, national space programs have remained at the governmental level with essentially the same launch technology, high costs and risks. These have progressively become less favourable to our increasingly risk averse administrations and the public at large. Occasionally costly accidents pushed back programs for years and took lives. For those aspiring to a future where spaceflight was commonplace, the time had come to seize their own destiny.

Paul Allen (left) and Burt Rutan discuss the results after a test flight of SpaceShipOne. Credit: Scaled Composites, LLC

Paul Allen (left) and Burt Rutan discuss the results after a test flight of SpaceShipOne. Credit: Scaled Composites, LLC

Over three decades visionary plane designer Burt Rutan had created at least one original aircraft a year including some notable firsts, such as the circumnavigatory Voyager. In the 1990s he began setting his sights higher, challenging the established approach of discarding single use expensive chemical rockets and returning to the concept of lifting bodied craft, like the X-15 in the 1960s, as a way to reach space. To that end he directed a secret project, “Tier One” through his small private company Scaled Composites in Mojave. The result was the production of a new twin boom mother-ship “White Knight” (which would be the high altitude carrier craft) and SpaceShipOne, the eventual spacecraft that would launch a new era. However getting these designs off the drawing board required funding.

Microsoft cofounder Paul Allen, met with Rutan to discuss various projects. As both became acquainted with each other, Allen revealed his shared enthusiasm for space exploration and was excited by Rutan’s designs for low cost suborbital spacecraft. In 2000, Allen agreed to form Mojave Aerospace Ventures with Rutan and fund their target to reach space. Around the same time, entrepreneur Peter Diamandis, founder of the X Prize Foundation had rediscovered the Orteig Prize as a template for incentivised revolution through competition. Enlisting title sponsor and the first female Iranian civilian astronaut Anousheh Ansari, a cash prize of $10 million was announced in 2002.

A new space race began attracting 26 competitors from seven countries. Scaled Composites had the head start on many of its peers before the Ansari X Prize was even announced, but winning was far from easy. Yet that is exactly what this small company did with two spaceflights within five days. The brainchild of one man, Burt Rutan, coupled with the visionary dreams of Allen, Diamandis and Ansari converged at a point in time. A point where this generation of innovators that grew up during the Apollo era decided to make their dreams of private spaceflight into a reality, rather than wait another 40 years for their national governments to do the same. For Rutan, this achievement brought him closer to the dream of floating weightless in his own black sky.

SpaceShipOne is shown gliding back to the Mojave Airport after a successful flight beyond the edge of space. Credit: Jim Campbell/Aero-News Network

SpaceShipOne is shown gliding back to the Mojave Airport after a successful flight beyond the edge of space. Credit: Jim Campbell/Aero-News Network

Simplicity and elegance

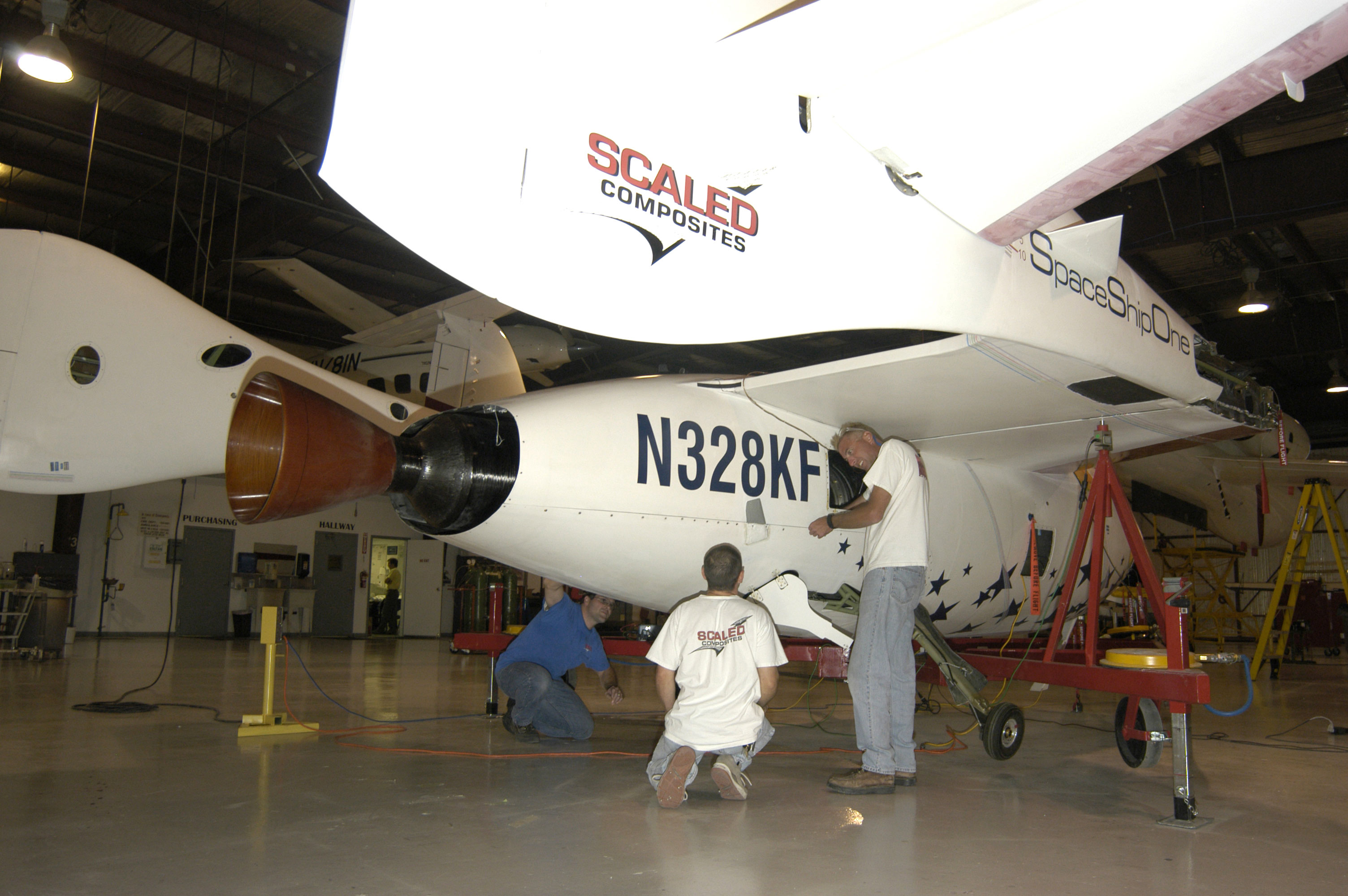

Rutan’s approach with Scaled Composites was to operate as a small custom build factory. Aerodynamic designs resulted from a mix of computer simulations, flight tests and even mounting aircraft parts on speeding flat-bed trucks to take readings. Commonalities in fabrication methods, materials and designs between White Knight and SpaceShipOne gave synergised simplicity to the creation of both vehicles. However, it was SpaceShipOne’s ingenious design that was a crucial foundation to the Tier One project.

The dangers of re-entry to spacecraft were well known, requiring complex systems and high risk manoeuvres to safely traverse the atmospheric threshold. Rutan conceived a “feather” manoeuvre and mechanism which essentially folded the spacecraft in two at its suborbital apogee. This meant SpaceShipOne could stably realign itself and fall vertically back to Earth like a badminton shuttlecock would. Pilots called this a “care free” mode. As drag greatly increased through the rapidly thickening atmosphere, there were much lower structural and thermal stress build ups over a shorter re-entry window. Even at Mach 3.25 SpaceShipOne would not get as hot as a returning spacecraft would from orbit at conventional re-entry angles and super (Mach 20+) speeds.

Upon descending to 70,000 feet, the feather mechanism was retracted and locked. SpaceShipOne was reconfigured as a glider and able to safely land. This distinctive feather capability was unlike any design envisioned for a spacecraft but its elegant simplicity came out of Rutan’s need to avoid re-entry tragedies of the past.

“Research should be defined as doing something where half of people will think it’s impossible and the other half think maybe it’ll work. Whenever there’s a true breakthrough you can go back and find a time period when the consensus was that idea was nonsense. What that means is that a true creative researcher has to have confidence in nonsense.”
      – Burt Rutan

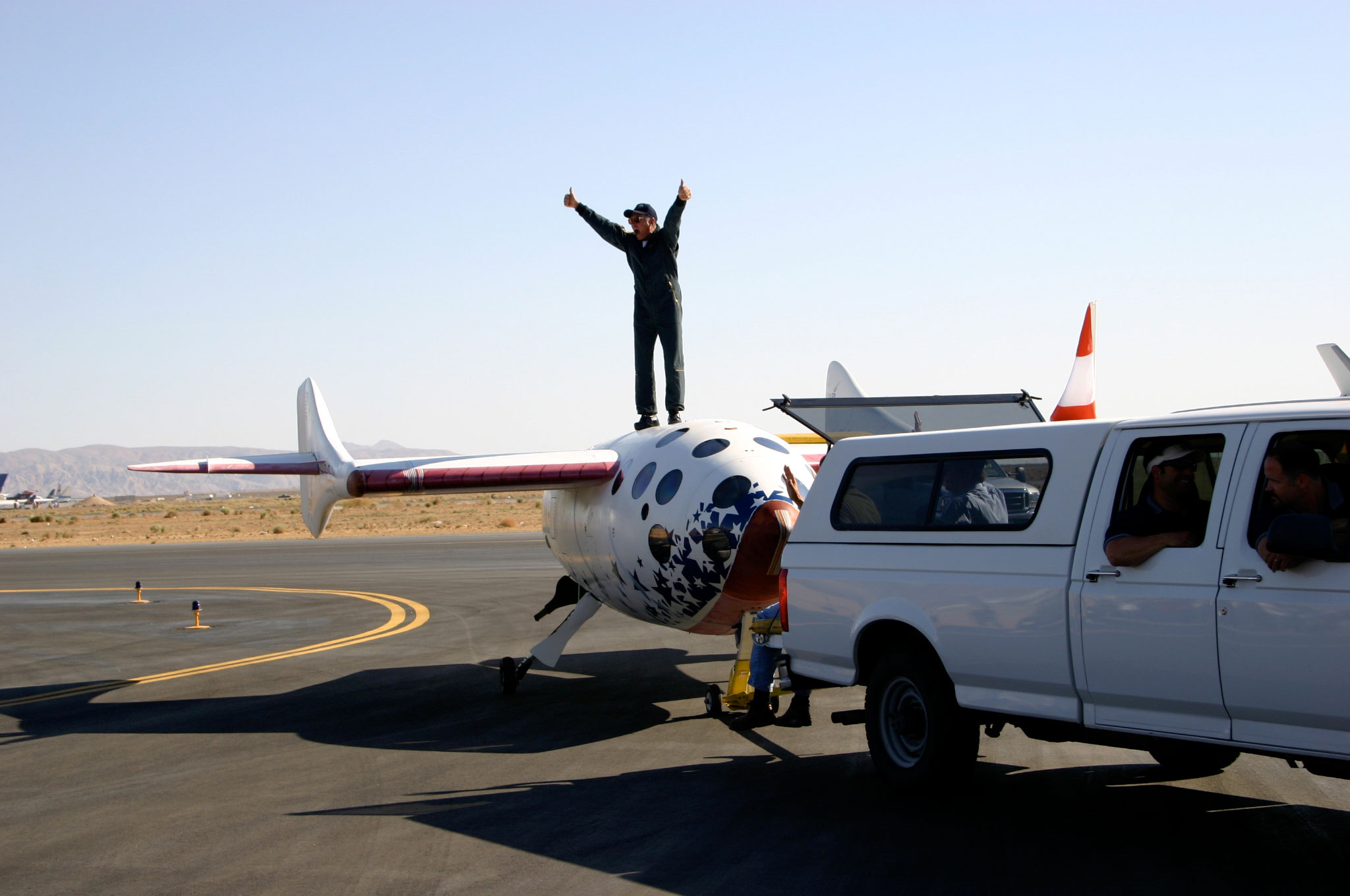

Mike Melvill celebrates atop SpaceShipOne (right) after completion of his first of two trips to outer space aboard the vehicle. Credit: http://www.flickr.com/photos/densaer/

Mike Melvill celebrates atop SpaceShipOne (right) after completion of his first of two trips to outer space aboard the vehicle. Credit: http://www.flickr.com/photos/densaer/

Pushing the envelope

Upon winning the Ansari X Prize in 2004, billionaire Richard Branson backed Rutan’s winning Tier One vehicles, base-lining his next generation fleet of privately developed space tourism craft on them. Virgin Galactic’s “SpaceShipTwo” and “WhiteKnightTwo” would continue to be manufactured by Scaled Composites under “Tier 1b” with Rutan as the Chief Technical Officer.

As with all great engineering endeavours there has been trial and error in the last ten years and Scaled Composites is no exception. New designs for the larger capacity, multi-purpose payload spacecraft and carriers needed maturation and system redundancies. Consequently a larger hybrid rocket engine for SpaceShipTwo was being tested on the ground but on 28th July 2007 a fatal accident occurred injuring others. The passing of employees Eric Blackwell, Todd Ivens and Glen May hit the close knit company and Rutan hard. All production and testing was stopped for a year while investigations into the accident proceeded. Findings of probable contamination led to revised procedures and safety checks for the already safety conscious company. A stark reminder of the past;

“If we die we want people to accept it. We’re in a risky business, and we hope that if anything happens to us it will not delay the program. The conquest of space is worth the risk of life”
      -Apollo 1 Commander Gus Grissom

Following the accident and investigation, Scaled Composites returned to work on SpaceShipTwo in 2008 with WhiteKnightTwo making its maiden flight later that year. By October 2010, SpaceShipTwo began glide test flights with incremental improvements to the spacecraft, safety, customer flight experience and ground based processes. Retaining the same feathering design lineage of SpaceShipOne, its successor demonstrated this feature in flight in May 2011. Since that time the Scaled Composites team have had three successful rocket powered flight tests of SpaceShipTwo, steadily pushing the envelope to build a safe spacecraft and a compliant, sustainable spaceline for Virgin Galactic.

21st century gold rush

SpaceShipOne’s successes not only opened the doors for Virgin Galactic, but also whet the appetites of those eager to claim the high ground in the new commercial race to space. As of 2014, 700 would be astronauts have signed up for a ride on the new SpaceShipTwo paying $250,000. The $50 million America’s Space Prize orbital spaceflight competition ran from 2004-10 and the X Prize Foundation has teamed up with Google to offer the $30 million Lunar X Prize. NASA has also ventured into the incentivised commercial arena with its own Centennial Challenge Prizes since 2005 looking for innovative solutions to technical issues from a wider field. They have recognised the successes in the private space sector and initiated commercial partnership competitions with companies from Blue Origin to SpaceX under the commercial development, crew, cargo and orbital transportation services programs.

Many of the diverse private competitors from the Ansari X Prize are still pursuing their goals to reach space. In 2009 the $2 million Northrop Grumman Lunar Lander X Challenge top prizes were shared among Masten Space Systems and Armadillo Aerospace. Technological and private sector legislative compliance remain as hurdles to be overcome yet the boom in the private spaceflight industry continues to gather pace. Wider potential economic growth is also offered by new private prospecting, research and exploration companies. These have plans to mine off world fuels and resources to release new economies, prosperity, scientific breakthroughs and release the pressure on dwindling natural resources at home.

Days of future passed

As for the legacy of Burt Rutan and SpaceShipOne, the last decade since that historic flight has seen the expansion of technology, investment and customer appetite not just for Virgin Galactic and SpaceShipTwo but for the commercial space sector as a whole. Closer to home many Scaled Composites employees have matured through the ranks of this growing familial company and gone on to greater things. Rutan retired in 2011 but remains as founder and a mentor to other Tier 1b designers. He still maintains goals of a Tier 2 program for orbital projects and a Tier 3 program to reach other bodies in space.

For Rutan, receiving a National Student Design Award in 1964 at an AIAA (American Institute of Aeronautics and Astronautics) meeting led to an encounter with Werner Von Braun which made a lasting impression. He still strongly believes that the current generation needs the courage and excitement to take risks in huge funding and technology development for massive breakthroughs and achievements as happened during the space race. Solving safety concerns and making aerospace investment profitable will be the game changing shift driving true revolution.

Aviation Treasures: Spirit of St. Louis, SpaceShipOne and the Bell X-1. Credit: Eric Long/NASM Smithsonian Institution

Aviation Treasures: Spirit of St. Louis, SpaceShipOne and the Bell X-1. Credit: Eric Long/NASM Smithsonian Institution

The remarkable spacecraft itself now exists in two places. At the Smithsonian’s National Air and Space Museum in Washington DC, SpaceShipOne has taken its place alongside the sound barrier breaking Bell X-1 “Glamourous Glennis” and Charles Lindbergh’s “Spirit of St Louis”. In recognition of Rutan’s achievement, the New Horizons spacecraft carries a piece of SpaceShipOne with it to a historic rendezvous with Pluto in July 2015. From suborbital flight to the furthest reaches of our solar system, SpaceShipOne is the little ship that keeps on flying higher. It and Burt Rutan’s legacies are secure in the pages of aerospace history.

“I strongly feel that, if we are successful, our program will mark the beginning of a renaissance for manned space flight. This might even be similar to that wonderful time period between 1908 and 1912 when the world went from a total of ten airplane pilots to hundreds of airplane types and thousands of pilots in 39 countries. We need affordable space travel to inspire our youth, to let them know that they can experience their dreams, can set significant goals and be in a position to lead all of us to future progress in exploration, discovery and fun. Thanks to the X PRIZE for the inspiration.”
      – Burt Rutan, 18th April 2003 Unveiling of the Tier One Program Press Release
